Trend Hinge Jig HINGE/JIG
Product Code
56TREHINGEJIG

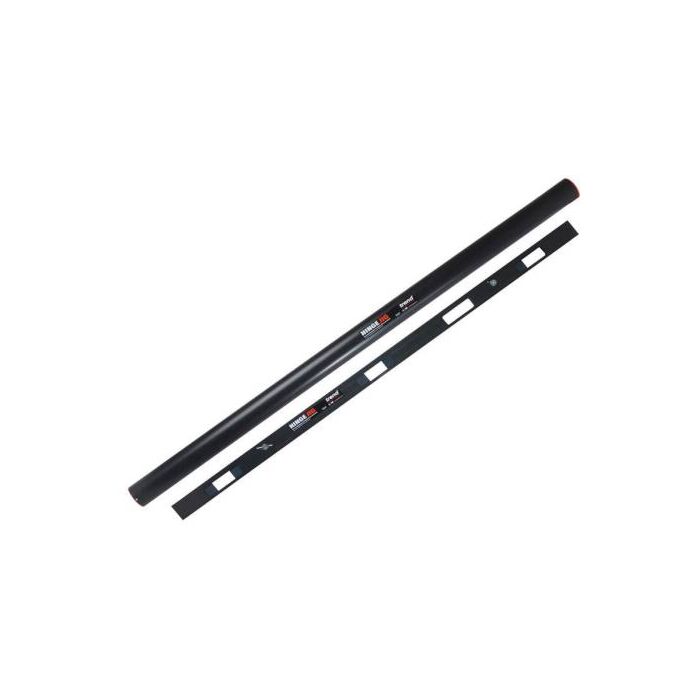

The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. Used on-site and in joinery shops to increase productivity with excellent results.
Brought to you by :
Your favourite Handy Hardware products are now part of TJ O’Mahony.ie! A wider range of tools, delivered directly for all your DIY needs.
€323.45 €262.97
/ Price Per ITEM
Can we help you? Chat with an expert nowChat with an expert now
The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. Used on-site and in joinery shops to increase productivity with excellent results. Four apertures for fire door requirements. No need for marking out in the conventional way. Quick and simple to set-up as the hinge is used as the pattern.
Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges. Use with a light duty router with 1/4inch collet. Long reach router cutter required, 12mm diameter with 70mm overall length. Angled position slots to prevent creep.
Patent No. GB2285410.
Includes: 4 x Apertures, 2 x Bradawls, 1 x 16mm Guide Bush, 1 x T-Handle Hex Key, 1 x 4mm Spacing Gauge and 1 x Plastic Storage Tube.
Specification
Hinge Sizes Possible:
- Length Min/Max: 67-127mm (2.5/8-5in).
- Width Min/Max: 9.5-35mm (3/8-1.3/8in).
Door Sizes Possible:
- Height Min/Max: 1955-2032mm (6ft 5in – 6ft 10in).
- Thickness Min/Max: 16-44mm.
This product is a non-stock item and only available to order.
Delivery normally takes 10 working days from when you place your order.
| Brand | Trend |
|---|---|
| Provided by | Handy Hardware |
| Delivery Rule | small & light |
