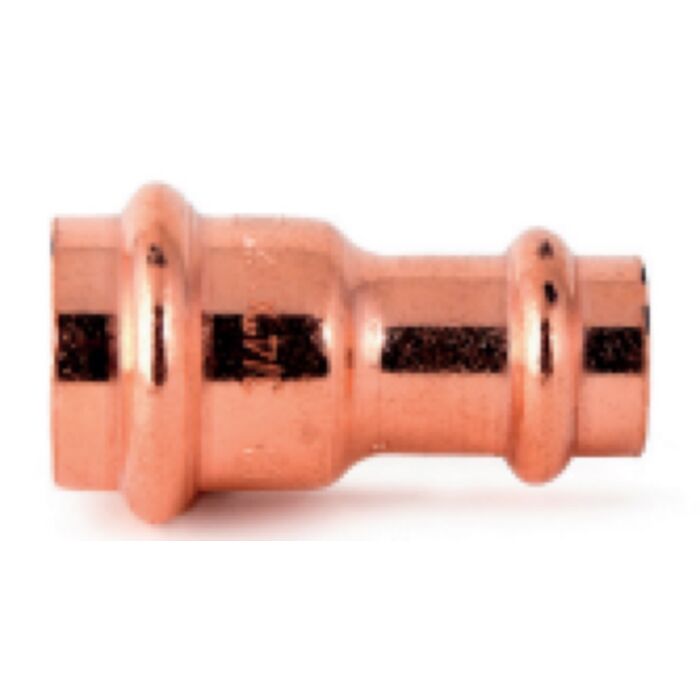

This Instantor Copper Press reducing coupler is designed to join two different copper tube sizes in a straight run. It forms part of the Instantor Copper Press Water system for compatible copper tube.
The press-fit jointing method avoids soldering and open flame. Instantor uses EPDM sealing rings with an unpressed-joint detection feature so incomplete joints can be identified during system pressure testing.
Key Features
Flame-free press jointing avoids soldering and hot-work permits.
EPDM sealing ring incorporates unpressed-joint leak detection.
Designed for compatible copper tube in potable-water, heating and cooling installations.
25-year manufacturer guarantee, subject to Instantor terms.
Technical Information
Product type: Copper Press Reducing Coupler
System: Instantor Copper Press - Water
Connection size: 3/4" x 1/2"
Compatible tube: Copper tube to EN 1057 R250 / R290 and similar outside-diameter grades
Press profile for these imperial sizes: VI
Operating temperature range: -25°C to 110°C
Maximum operating pressure at 30°C: 16 bar
Maximum operating pressure at 95°C: 10 bar
Body material: Copper
Seal material: EPDM
Potable-water approval: WRAS approved
Certification: KIWA
Guarantee: 25 years, subject to manufacturer terms
Please Note
Use an approved, correctly sized VI-profile jaw for these imperial Copper Press fittings.
Copper and brass press fittings require protection from direct contact with concrete, gypsum, plaster and similarly aggressive materials.
Not for primary solar lines, solid-fuel or other uncontrolled heat-source primary flow and return lines.
