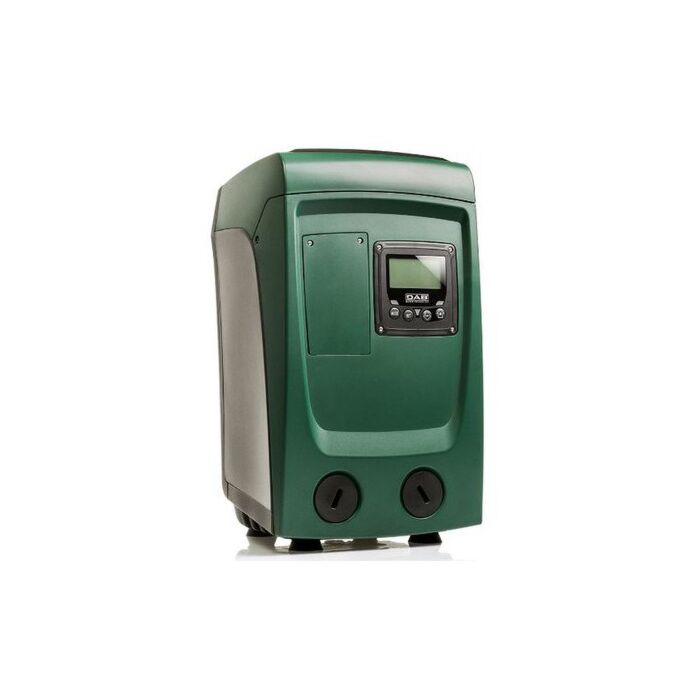

Dab Esybox Mini 3(5.5Bar)

Product Code
4660183504
€645.00 €524.39
/ Price Per ITEM
Buy & Deliver Available for Delivery
Buy & Collect Available for Collection

Available for delivery Change

0 Available for collection from Branch Change

Add To Project

Can we help you? Chat with an expert nowChat with an expert now

When low water pressure is impacting your home’s taps, showers or garden supply, the DAB Esybox Mini 3 (60183504) delivers a smart, compact and efficient boosting solution. This WRAS-approved electronic booster pump is designed to automatically regulate water pressure based on demand, giving consistent flow throughout domestic cold water systems — from bathroom outlets to irrigation and rainwater harvesting.

Built with advanced inverter (VFD) variable-speed technology, the Esybox Mini 3 optimises energy use by using only the power needed for the current demand, which can help reduce running costs compared with traditional fixed-speed pumps. Easily installed vertically, horizontally or wall-mounted, its modular design and intuitive LCD display make setup and monitoring straightforward for installers.

Suitable for residential and light commercial applications, this compact booster pump combines a self-priming multi-stage pump with integrated pressure and flow sensors, a built-in expansion vessel and robust control electronics — delivering whisper-quiet, reliable performance where space and comfort matter


Key Features

  • WRAS-Approved for Potable Water: Safe for domestic water supply use.
  • Variable Speed Inverter Technology: Automatically adjusts flow to maintain constant pressure and save energy.
  • Compact All-in-One Unit: Self-priming multi-stage pump, controller, sensors and expansion vessel integrated.
  • Quiet Operation: Low noise output (approx. 45 dB(A) @ 1 m) ideal for interior installations.
  • Flexible Installation: Can be mounted vertically, horizontally or wall-mounted.
  • Large LCD Display: High-resolution screen with easy-read control and system info.
    • Removable Maintenance Access: Protects key components while easing access for servicing.
  • Energy Efficient: Variable speed design reduces consumption by up to ~50% vs traditional systems


Technical Specification

  • Product Code: 60183504
  • Type: Variable Speed Electronic Water Pressure Booster
  • Approval: WRAS approved for potable water use
  • Maximum Flow Rate: Up to 80 L/min (4.8 m³/h)
  • Maximum Head: Up to 55 m
  • Maximum Working Pressure: Up to ~5.5 bar (settable)
  • Maximum Suction Depth: ~8 m
  • Operating Noise Level: Approx. 45 dB(A) @ 1 m
  • Installation: Vertical, horizontal or wall mount capable
  • Display: High-resolution LCD pressure/setting display
  • Expansion Vessel: Integrated (~1–2 L)
  • Power Supply: Single-phase mains (230 V)
  • Connections: Standard 1″ inlet/outlet unions
  • Applications: Domestic cold water pressure boosting, garden irrigation, rainwater reuse



TJ’s Tip

When installing the DAB Esybox Mini 3, plan the orientation (vertical or horizontal) before fixing — this compact booster can fit under sinks or in cupboards, but leave enough clearance for pressure sensor access and display viewing. Adding isolation valves on the inlet and outlet can make future servicing and maintenance much quicker.
