Grant Ez90 Standard Flue Kit - Walls Up To 450Mm (S/S Terminal Guard)

Grant Ez90 Standard Flue Kit - Walls Up To 450Mm (S/S Terminal Guard)

Product Code

46GRA036

€239.95 €195.08

/ Price Per ITEM

Available for delivery Change

0 Available for collection from Branch Change

Add To Project

Can we help you? Chat with an expert now Chat with an expert now

More Information

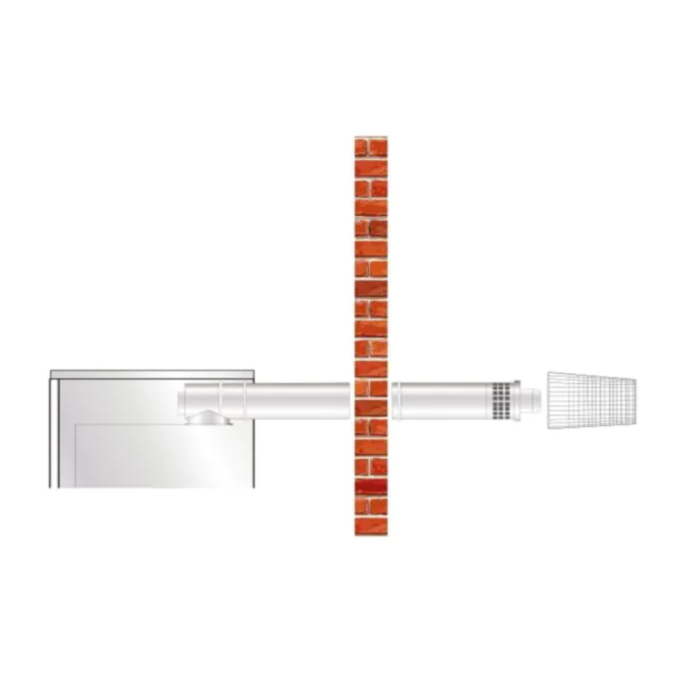

Make boiler installations quicker, cleaner and more reliable with the Grant EZ90 Flue System, a low-level balanced flue kit designed specifically for Grant indoor oil and condensing boilers up to approximately 26 kW (90 BTU). This complete flue assembly delivers a room-sealed combustion path with combustion air intake and exhaust pathways in one unit — ensuring safe operation, reduced draught dependencies and efficient flue gas discharge to the outdoors.

The EZ90 kit features a telescopic stainless steel flue design with self-sealing ducts and a quick-fit clamp arrangement that eliminates the need for silicone or tape at joints, helping installers achieve a positive, airtight seal every time. Its compact stainless steel terminal and guard provide neat exterior detailing, while the modular assembly allows adjustment to suit a range of wall thicknesses.

Designed to work seamlessly with Grant boilers in internal plant rooms, boiler houses and utility spaces, the EZ-Fit system reduces installation time and helps maintain compliant, balanced combustion performance even under exposed conditions.

Key Features

Balanced Flue Design: Dual path for combustion air intake and flue gas exhaust — maintains boiler efficiency and safety.
Telescopic Stainless Steel Flue: Adjustable length to suit different wall thicknesses — quick and simple to fit.
Self-Sealing Ducts: No silicone or tape needed; positive seal with quick-fit clamps.
Compact Terminal with Guard: Provides neat exterior finish and protection.
Easy Installation: Designed for fast assembly and reduced labour time.
Compatible with Grant Boilers: Suits most internal Grant models up to ~26 kW (90 BTU).

Technical Specification

Product: Grant EZ90 Flue Kit (EZ-Fit Flue System)
Application: Low-level balanced flue for internal/boiler house installations
Compatible Boiler Output: Up to ~26 kW (90 BTU)
Flue Type: Balanced concentric flue system for oil/condensing boilers
Flue Material: Stainless steel components
Design: Telescopic adjustable unit with self-sealing ducts
Installation: Horizontal discharge through external wall; adjustable length to suit site requirements
Terminal: Stainless steel with guard included
Sealing System: Quick-fit clamp assembly with factory sealed joints
Compliance: Designed for balanced room-sealed flue requirements
