Galvanised Manhole Cover And Frame 450mm X 450mm X 5 Ton

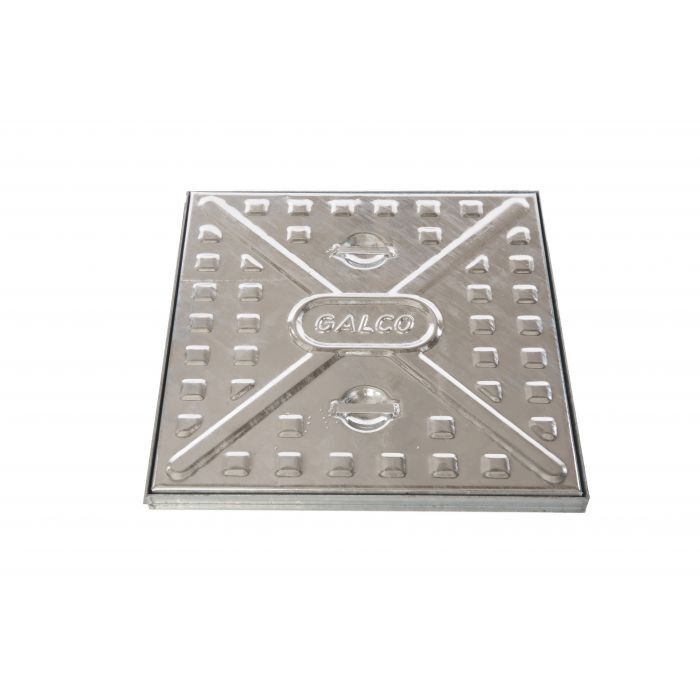

Galvanised Manhole Cover And Frame 450mm X 450mm X 5 Ton

Product Code

30PC5BG

€34.95 €28.41

/ Price Per ITEM

Available for delivery Change

0 Available for collection from Branch Change

Add To Project

Can we help you? Chat with an expert now Chat with an expert now

More Information

The Galvanised Manhole Cover and Frame (Product Code: 30PC5BG) is a durable and reliable solution designed for light-duty vehicle areas such as domestic driveways and private car parks. Featuring a solid-top, pressed galvanised steel cover within a high-strength polypropylene frame, this unit is engineered to withstand a Gross Plated Weight (GPW) of up to 5 tonnes.

It provides a secure, flush finish over inspection chambers, combining smart appearance with strength and longevity.

Key Features:

5 Tonne GPW Load Rating: Suitable for domestic driveways and areas with occasional light vehicle use (cars and small vans).
Galvanised Steel Construction: The cover is hot-dip galvanised to BS EN 1461 standards, providing superior resistance to corrosion and rust.
Durable Polypropylene Frame: The frame is made from robust PP material, adding stability and strength to the overall unit.
Solid Top Design: Offers a secure, plain seating cover that prevents debris from entering the manhole.
Integral Lifting Handles: Fitted with built-in lifting points for easy handling and access (lifting keys sold separately).

Technical Specifications:

Product Code: 30PC5BG
Clear Opening Dimensions: 450mm x 450mm
External Frame Dimensions: 513mm x 513mm x 30mm (Depth)
Material: Galvanised Steel Cover with Polypropylene Frame
Load Rating: 5 Tonne Gross Plated Weight (GPW)
Compliance: BS EN 1449:1991/EN 10025:2004 standards for steel and galvanising.

TJ’s Tip:

This cover is designed for very light traffic areas like domestic driveways, not public highways or heavy commercial use. For correct installation, the frame should be bedded securely in a strong mortar mix on a solid concrete base to ensure the load rating is achieved and maintained.
