LB Cylinders Grade 3 Indirect Insulated Copper Cylinder 36 x 18

Product Code
471230
€539.95 €438.98
/ Price Per ITEM
Buy & Deliver Available for Delivery
Buy & Collect Available for Collection

Available for delivery Change

0 Available for collection from Branch Change

Can we help you? Chat with an expert nowChat with an expert now

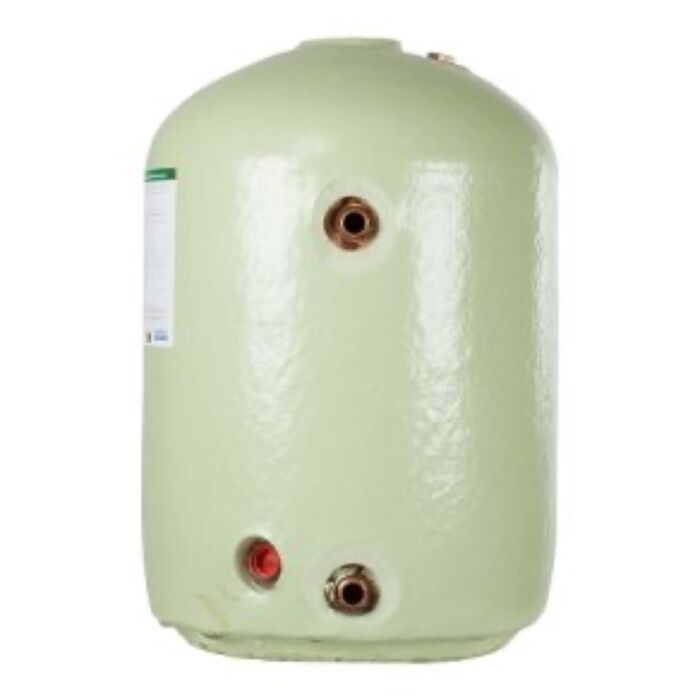

This LB Cylinders Grade 3 indirect copper cylinder is an open-vented hot-water storage cylinder measuring 36 x 18 inches. It is designed for connection to a separate boiler or other primary heating source through its internal indirect coil.
The cylinder stores approximately 117 litres and is manufactured from BS 2870 C106 copper to Grade 3 material specification. High-density polyurethane insulation helps reduce standing heat loss.
It is suited to domestic open-vented hot-water systems and should be selected, installed and commissioned by a suitably qualified plumbing or heating professional.

Key Features
  • Grade 3 copper construction for open-vented domestic hot-water storage.
  • Internal indirect coil connects to a separate primary heating source.
  • Factory-applied rigid polyurethane insulation reduces standing heat loss.
  • Manufactured to BS 1566 under an ISO 9001:2015 quality programme.

Technical Information
  • Product type: Open-vented indirect copper cylinder
  • Nominal size: 36 x 18in
  • Capacity: 117 litres
  • Cylinder material: Copper BS 2870 C106
  • Material grade: Grade 3
  • Manufacturing standard: BS 1566
  • Quality system: ISO 9001:2015
  • Standing heat loss: 1.70kW per 24 hours
  • ErP rating: C
  • Primary flow connection: 1in BSP female
  • Primary return connection: 1in BSP female
  • Insulation type: High-density rigid polyurethane
  • Maximum insulation thickness: 30mm
  • Insulation thermal conductivity: 0.038W/mK
  • Insulation fire resistance: B1 to DIN 4102
  • Uninsulated cylinder dimensions H x D: 900 x 450mm
  • Tilted dimension: 935mm

Please Note
  • For open-vented systems only.
  • Confirm the required capacity, tapping arrangement, immersion provision and installation clearances before ordering.
  • Professional installation is required.
More Information
BrandLB Cylinders
Weight (kg)21.0000
Provided byTJ O'Mahony
Delivery Rulelarge & heavy
