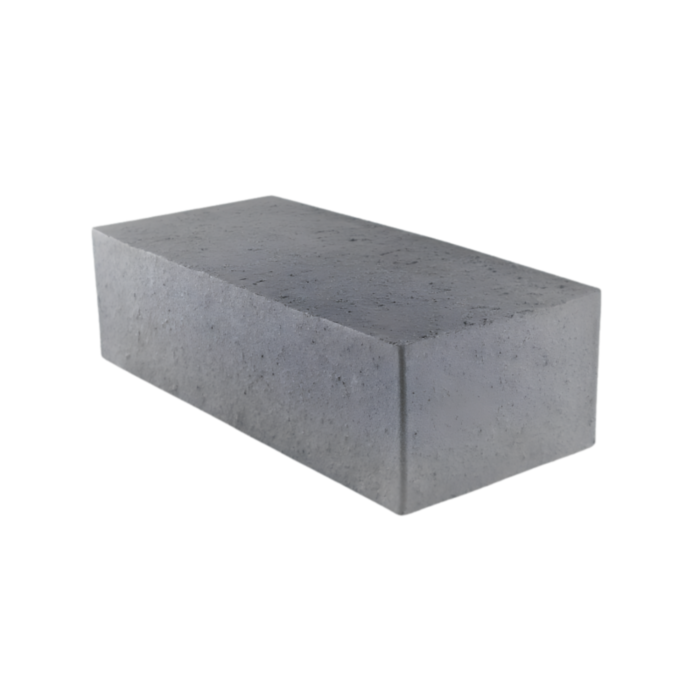

The Kilsaran Class B Engineering Brick is a dense aggregate concrete masonry unit for demanding civil engineering and construction applications. Its 50N/mm² characteristic compressive strength makes it suitable where a high-strength solid brick is required.
The grey 215 x 102 x 65mm unit is intended for uses such as manholes, inspection chambers, foundations and other engineering masonry. Its declared properties include Class A1 reaction to fire and a gross dry density above 2000kg/m³.
Key Features
50N/mm² characteristic compressive strength for demanding engineering masonry.
Solid Category I aggregate concrete unit for consistent structural performance.
Compact standard brick format works with conventional masonry layouts.
Class A1 reaction to fire supports non-combustible masonry construction.
Technical Information
Product type: Class B engineering quality brick
Material: Aggregate concrete masonry
Colour: Grey
Dimensions: 215 x 102 x 65mm
Unit category: Category I
Dimensional tolerance: Class D1
Configuration: Group 1 unit to I.S. EN 1996-1-1
Characteristic compressive strength: 50N/mm²
Moisture movement: Less than 0.6mm/m
Shear bond strength: 0.15N/mm² tabulated value to I.S. EN 998-2
Reaction to fire: Class A1
Water vapour permeability: 5/15µ
Gross dry density: Greater than 2000kg/m³
Thermal conductivity: 1.00-1.11W/mK
Manufacturing standard: EN 771-3
Please Note
Freeze-thaw durability is not declared in the product declaration; do not leave the unit exposed where declared freeze-thaw performance is required.
