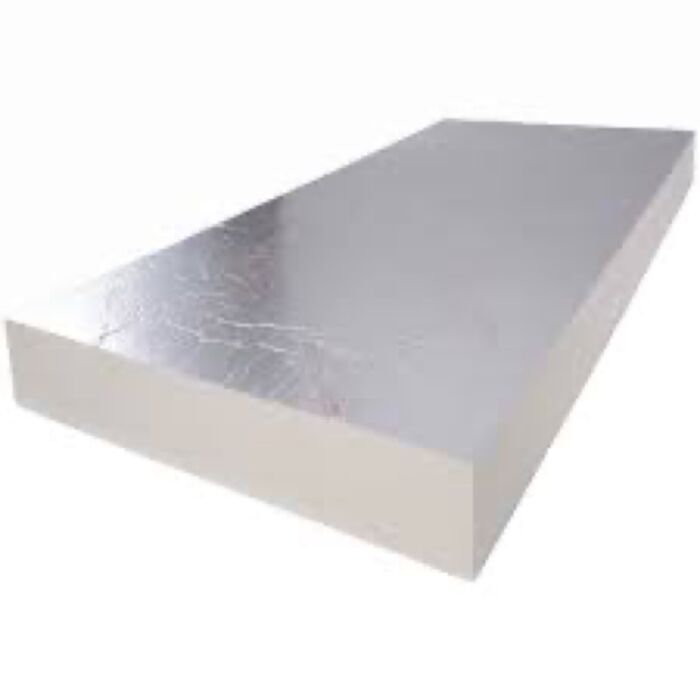

Unilin Thin-R XT/PR_UF PIR Floor Insulation Board 2400 x 1200 x 150mm

Product Code
127045

The floor in any building is an area of considerable downward heat loss when not properly insulated. Thin-R Underfloor will significantly improve the U-Value of new and existing floors.

Thin-R Underfloor is lightweight, easy to install and combines high compressive strength with low thermal conductivity, providing a high performance solution for floor insulation.


€89.95 €73.13
/ Price Per SHEET
Buy & Deliver Available for Delivery
Buy & Collect Available for Collection

Available for delivery Change

0 Available for collection from Branch Change

Can we help you? Chat with an expert nowChat with an expert now

Unilin Thin-R XT/PR_UF is a high-performance rigid PIR board for insulating ground-supported and suspended floors. This straight-edge board measures 2400 x 1200 x 150mm and covers 2.88m².
The PIR core and low-emissivity foil facings provide low thermal conductivity while maintaining the compressive strength required beneath suitable screed and floor constructions. The board is also compatible with correctly designed underfloor-heating systems.
It is suited to new-build and refurbishment work across concrete slab, beam-and-block, hollow-core and suspended timber floors, subject to the specified floor build-up.

Key Features
  • Low thermal conductivity helps reduce downward heat loss.
  • 150kPa compressive strength suits correctly designed floor constructions.
  • Low-emissivity foil facings improve thermal performance.
  • Compatible with underfloor-heating systems.
  • Large 2.88m² board supports efficient floor coverage.

Technical Information
  • Product range: Thin-R XT/PR_UF
  • Product type: Rigid PIR floor-insulation board
  • Board dimensions L x W x T: 2400 x 1200 x 150mm
  • Board area: 2.88m²
  • Edge profile: Straight edge
  • Core material: Rigid polyisocyanurate (PIR)
  • Facings: Low-emissivity composite foil on both sides
  • Thermal conductivity: 0.022W/mK
  • Declared thermal resistance: 6.80m²K/W
  • Compressive strength: 150kPa
  • Reaction to fire: Euroclass F
  • Manufacturing standard: EN 13165
  • Certification: NSAI Agrément Certificate 03/0183
  • Certification: BBA Certificate 23/6997
  • Suitable applications: Ground-supported and suspended floors
  • Suitable floor constructions: Concrete slab, beam-and-block, hollow-core and suspended timber floors
  • Underfloor heating compatibility: Suitable
  • Pack quantity: 1 board

Please Note
  • Required insulation thickness and U-value depend on the complete floor build-up and perimeter-to-area ratio.
  • Lay boards with closely butted joints; stagger joints where two layers are installed.
  • Install a suitable separating layer with taped 150mm laps above the insulation where required by the floor specification.
  • Use Unilin XT/STR perimeter strips at wall-to-floor junctions and seal around service penetrations.
